2.4G5.8G 2400-2500/5150-5850M Wifi6 12dBi Directional Wifi Antenna Outdoor Single Polarized Wall Mounted

Name: 24G58G 2400250051505850M Wifi6 12dBi Directional Wifi Antenna Outdoor Single Polarized Wall Mounted
Brand: Leenz
Price: 1 USD

Quality 2.4G5.8G 2400-2500/5150-5850M Wifi6 12dBi Directional Wifi Antenna Outdoor Single Polarized Wall Mounted for sale

Brand Name : Leenz

Model Number : LZANT-11523-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 2400-2500/5150-5850MHz

VSWR : <2.0

Peak Gain : 12dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	2400-2500/5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	10/12dBi
Polarization	Vertical
Horizontal Beamwidth	45±5°/20±5°
Vertical Beamwidth	45±5°/20±5°
F/B	>29dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	18818833mm
Radome material	ABS
Weight	0.8Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G5.8G 2400-2500/5150-5850M Wifi6 12dBi Directional Wifi Antenna Outdoor Single Polarized Wall Mounted

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
2400	9.7
2410	9.9
2420	10.0
2430	10.3
2440	10.3
2450	10.2
2460	10.2
2470	10.2
2480	10.1
2490	9.9
2500	10.0

5150	14.2
5200	14.0
5250	13.8
5300	13.4
5350	13.1
5400	13.3
5450	12.5
5500	12.3
5550	11.6
5600	11.5
5650	11.7
5700	11.2
5750	11.5
5800	12.1
5850	11.8

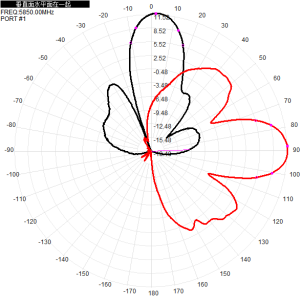

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
2400MHz
2500MHz
5150MHz
5850MHz

Product Tags:

2.4G5.8G wifi6 directional antenna

12dBi wifi6 directional antenna

2400-2500/5150-5850M wifi6 directional antenna

2.4G5.8G 2400-2500/5150-5850M Wifi6 12dBi Directional Wifi Antenna Outdoor Single Polarized Wall Mounted Images
