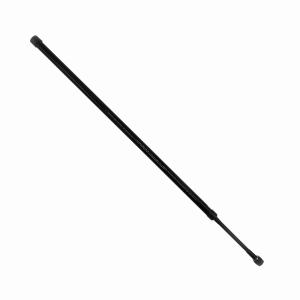

High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: High Gain External Antenna Gooseneck 340370MHz 15dBi 20x800mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10783-B

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 340-370MHZ

VSWR : <2.0

Peak Gain : 1.5dBi

Impedance : 50

Contact Now

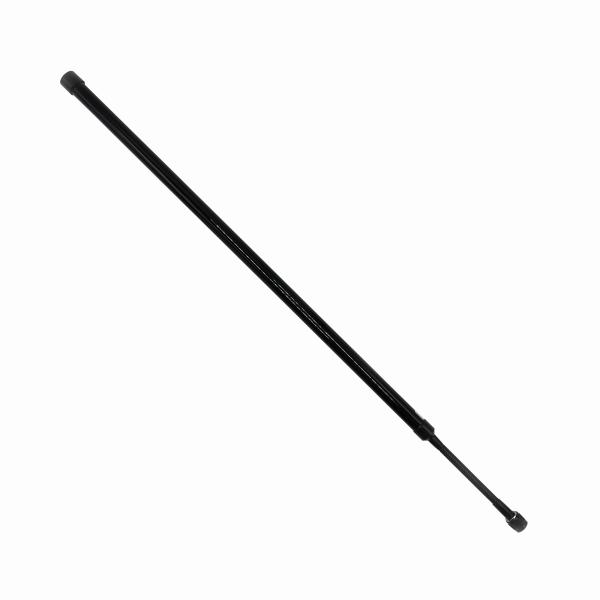

Indoor Antenna External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

1. Specification

A. Electrical Characteristics
Frequency	340-370MHz
Impedance	50 Ohm
S.W.R.	<2.0
Gain	1.5dBi
Efficiency	≈70%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	44-84°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	TNC connector
Dimension	Φ20*800mm
Weight	0.278Kg
Radome Materials	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

2.2 Total Efficiency & Gain

2.3 Radiation Pattern
