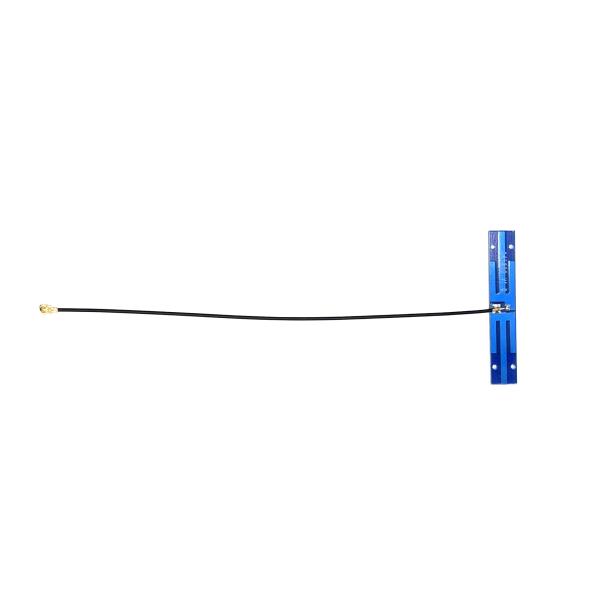

2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna

Name: 24G 58G DualBand Wifi Bluetooth BuiltIn Laptop Antenna IPEX1 Omnidirectional HighGain 3dbi PCB Antenna
Brand: Leenz
Price: 1 USD

Quality 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna for sale

Brand Name : Leenz

Model Number : LZANT-10793-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz; 5150-5850MHz

VSWR : <2.0

Peak Gain : 3dBi

Impedance : 50 OHM

Contact Now

2.4G5.8G dual-band wifi Bluetooth built-in laptop antenna IPEX-1 omnidirectional high-gain 3dbi PCB antenna

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz	5150-5850MHz
S.W.R.	<= 2.0	<= 2.0
Antenna Gain	2dBi	3dBi
Efficiency	≈75%	≈66%
Polarization	Linear	Linear
Horizontal Beamwidth	360°	360°
Vertical Beamwidth	89-94°	45-65°
Impedance	50 Ohm
Max Power	50W
B. Material & Mechanical Characteristics
Cable Type	RF1.13 Cable
Connector Type	MHF1 Plug
Dimension	51.5*9mm
Weight	0.001Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 65 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz)	Gain (dBi)	Efficiency (%)
2400	2.3	80.6
2410	2.2	77.8
2420	1.9	74.5
2430	1.8	73.0
2440	1.7	72.8
2450	1.9	74.7
2460	2.0	76.8
2470	2.0	76.4
2480	1.9	72.7
2490	1.9	71.1
2500	2.1	74.0

5150	2.6	60.6
5200	2.6	60.0
5250	2.6	62.7
5300	2.7	68.6
5350	2.5	68.7
5400	2.3	65.1
5450	2.2	66.3
5500	2.0	64.5
5550	2.0	63.5
5600	1.9	63.3
5650	1.9	65.4
5700	1.8	63.7
5750	2.3	69.5
5800	2.7	75.0
5850	2.9	77.2

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
2400MHz
2450MHz
2500MHz

5.8G	3D	2D-Horizontal	2D-Vertical
5150MHz
5500MHz
5850MHz
