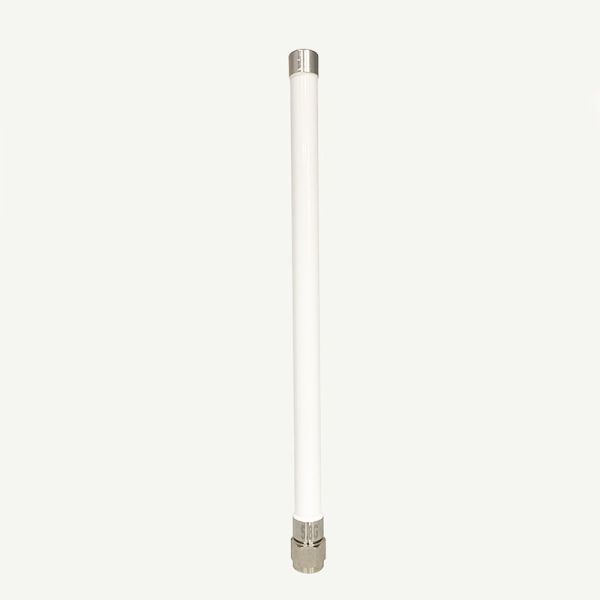

5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 58GHz 9dBi Fiberglass Omnidirectional Antenna 51505850MHz
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10411-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 5150-5850MHz

VSWR : <2.0

Peak Gain : 9dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency		5150-5850MHz
VSWR		< 2.0
Efficiency		≈70%
Peak Gain		9dBi
Impedance		50 Ohm
Polarization		Linear
Horizontal Beamwidth		360°
Vertical Beamwidth		15±5°
T90(H) roundness		±2
Max Power		50W
B. Material & Mechanical
Connector Type	N-J
Dimension	Φ16*300±3mm
Weight	0.1Kg
Radome material	Fiberglass (Grey)
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz

2.2 Total Efficiency & Gain:

5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz

2.3 Radiation Pattern
