SMA Female 300-1500M Handheld Device Soft Antenna

Brand Name : Leenz

Model Number : LZANT-11875-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 300-1500MHz

VSWR : <2.0

Peak Gain : 1dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency 300-1500MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 17-76°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension Φ15*300mm
Weight 0.05Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

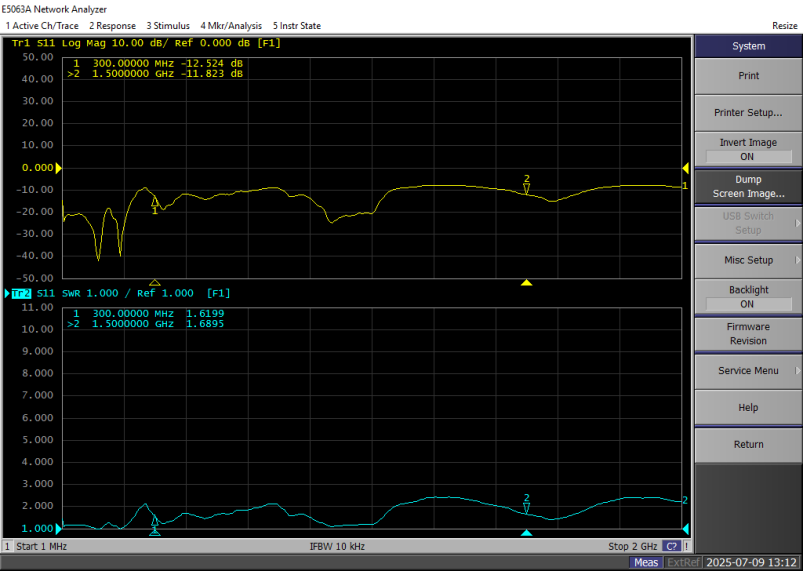

2.1 VSWR

SMA Female 300-1500M Handheld Device Soft Antenna

2.2 Total Efficiency & Gain:

频率(MHz) 增益(dBi) 效率(%)
300 -3.3 21.4
350 -2.8 21.7
400 -1.6 30.6
450 -1.7 32.4
500 -2.0 32.2
550 -3.8 24.9
600 -2.6 27.3
650 -2.6 24.6
700 -1.4 23.8
750 0.8 33.0
800 1.3 36.1
850 1.3 42.5
900 0.3 39.4
950 0.8 39.0
1000 1.4 41.0
1050 1.4 44.6
1100 0.4 46.8
1150 -0.2 37.8
1200 -3.5 16.5
1250 -3.5 16.1
1300 -3.4 13.1
1350 -4.3 12.0
1400 -2.4 17.4
1450 -1.5 21.2
1500 -1.2 27.1
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical

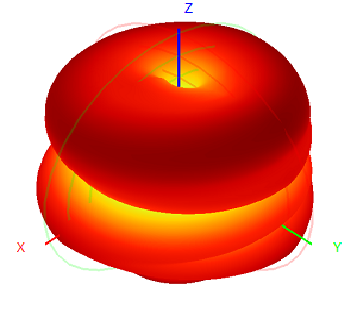

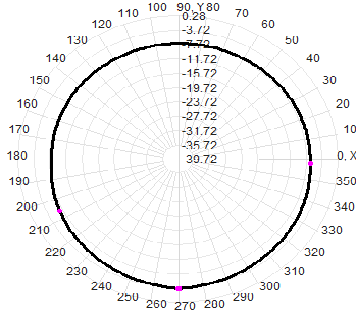

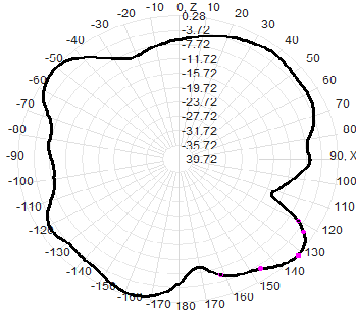

300MHz SMA Female 300-1500M Handheld Device Soft Antenna SMA Female 300-1500M Handheld Device Soft Antenna SMA Female 300-1500M Handheld Device Soft Antenna

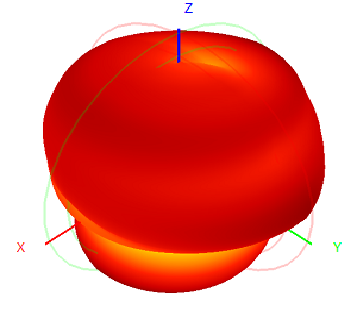

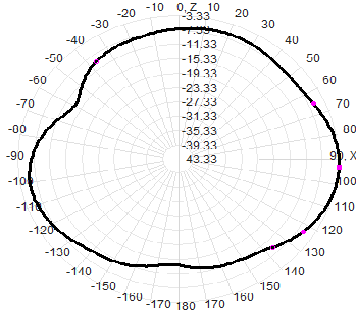

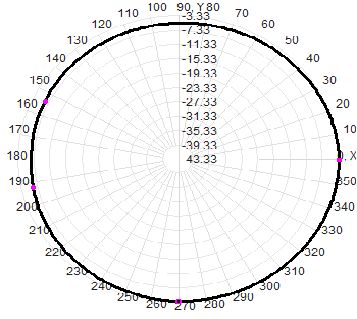

900MHz SMA Female 300-1500M Handheld Device Soft Antenna SMA Female 300-1500M Handheld Device Soft Antenna SMA Female 300-1500M Handheld Device Soft Antenna

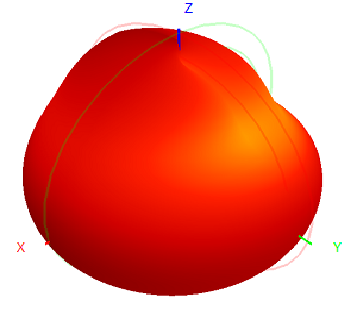

1500MHz SMA Female 300-1500M Handheld Device Soft Antenna SMA Female 300-1500M Handheld Device Soft Antenna SMA Female 300-1500M Handheld Device Soft Antenna
