Name: 67G 62506750M 14dbi Outdoor Directional Antenna Single Polarization
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10503-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 6250-6750MHz

VSWR : <2.0

Peak Gain : 14dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	6250-6750MHz
S.W.R.	<= 2.0
Antenna Gain	14dBi
Polarization	V
Horizontal Beamwidth	45±5°
Vertical Beamwidth	30±5°
F/B	>17dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female
Dimension	979723mm
Radome material	ABS
Weight	0.25Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data

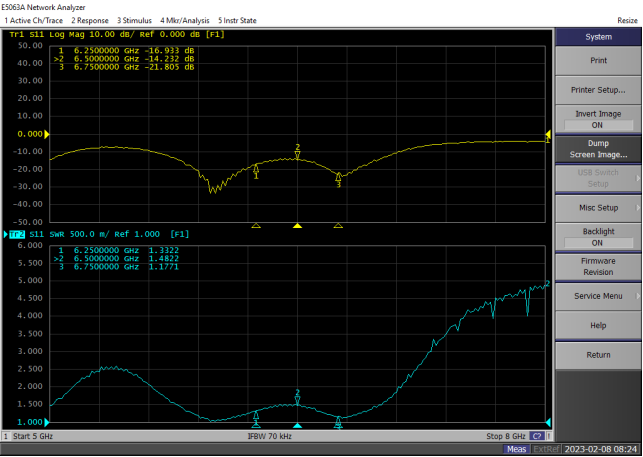

2.1 VSWR

6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization

2.2 Total Efficiency & Gain:

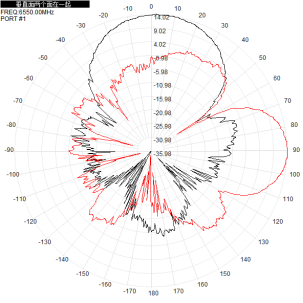

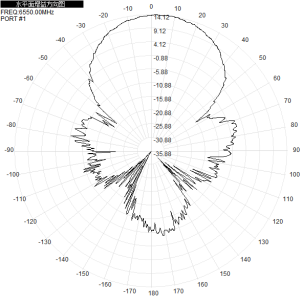

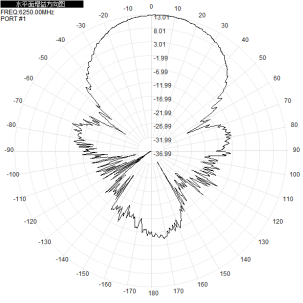

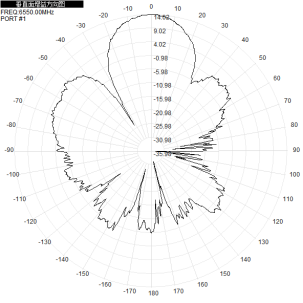

2.3 Radiation Pattern
